AHD to HDMI Converter

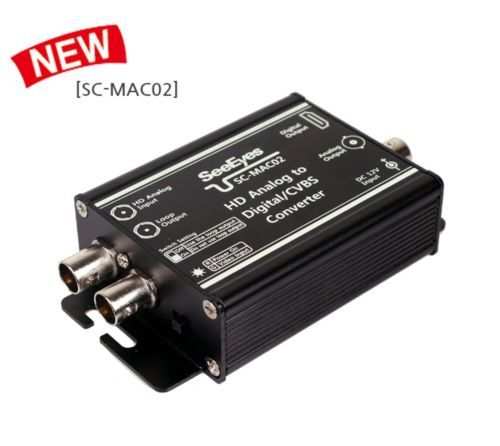

SC-MAC02 is a multi-format converter that change HD Analog(AHD, TVI, CVI)
and CVBS input signal to HD and CVBS output signal.

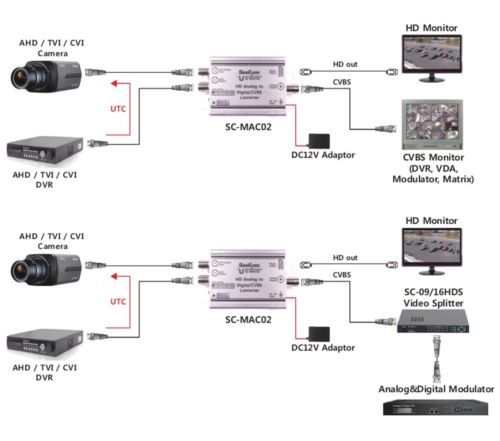

It provides UTC control function through loop out port, and already installed analog matrix,
modulator and DVR system can be used by using SC-MAC02.

FEATURES

• Convert 2M HD-Analog(AHD/TVI/CVI) and CVBS Input signal to HD and CVBS output signal.
• Support UTC (Up The Coax Communication) control function through loop out port
• Existing analog video server(matrix) is available.
• Monitoring is possible through HD out port. (No need of separate monitoring device)
• High definition signal converting without signal loss.
• Superior applications in the construction field with the slim aluminum case.
• Surge protection circuit built-in.
