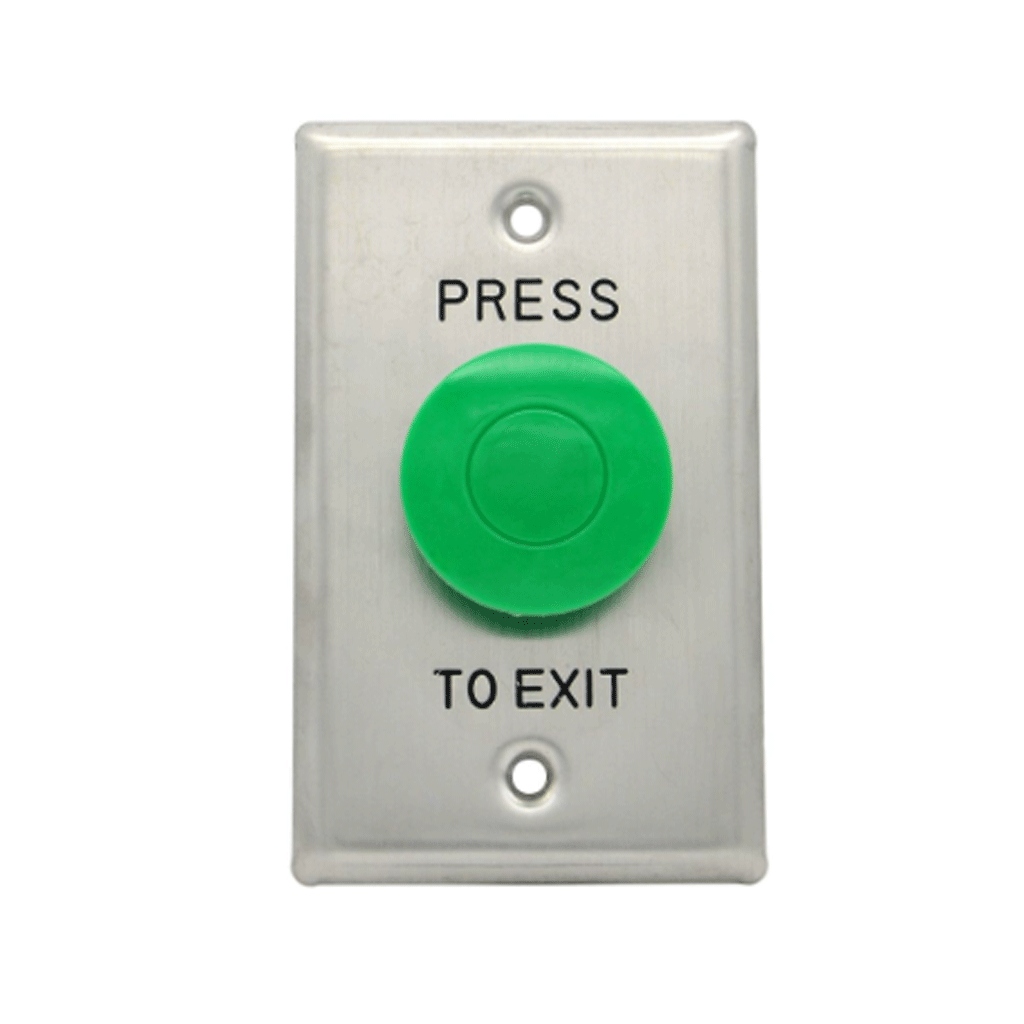

Exit Button, Big Mushroom, Green, Standard Stainless Steel Plate, Momentary

Mechanical momentary push to exit green mushroom button with isolated NO and NC contacts, mounted on a stainless steel plate.

• Current (max): 10A (12 or 24VDC)
• Current (min): 5mA
• Resistance: <=50 mΩ
• Insulation resistance: >100 MΩ
• Contact: isolated NC and NO
• Dimensions: 70 x 115 x 53mm
• Mushroom head diameter: 40mm
• Plate: GPO size, stainless steel
• Wording: PRESS TO EXIT or customisable upon request
