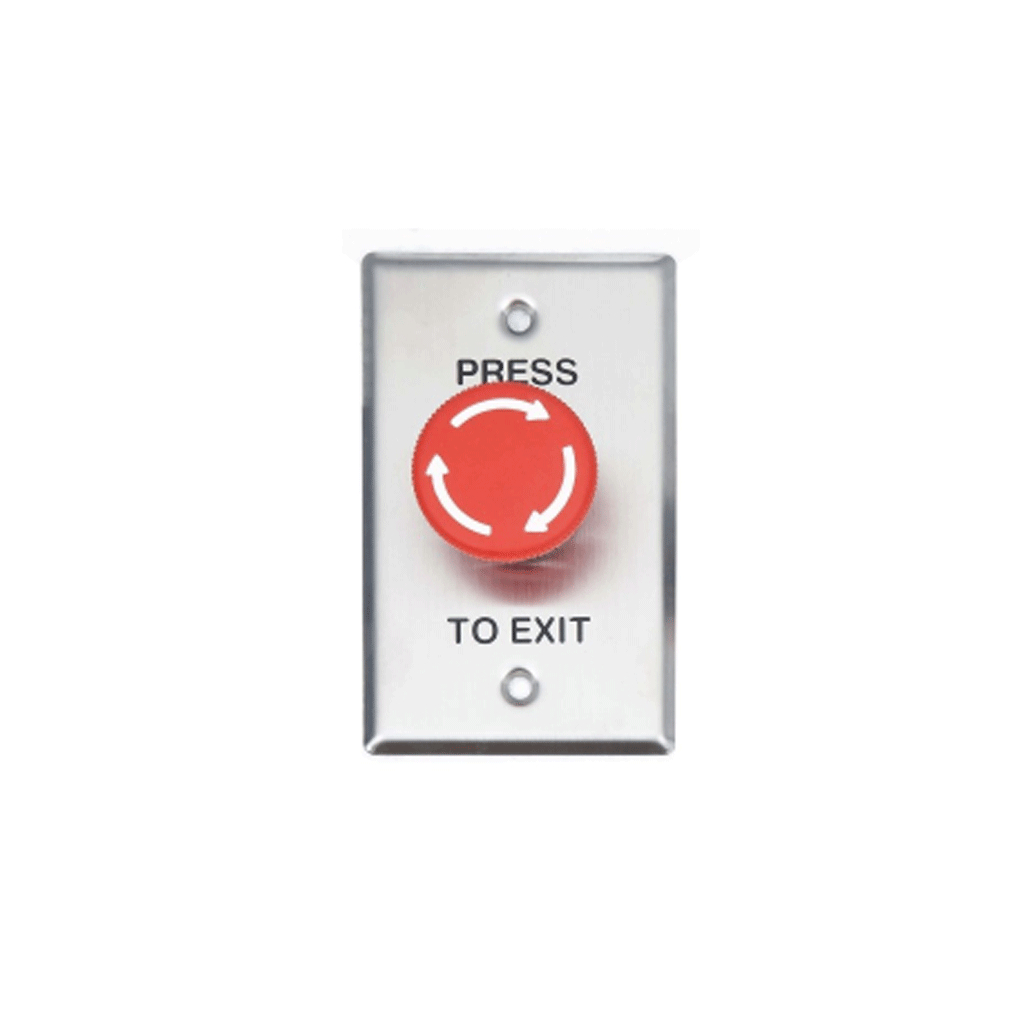

Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate

Mechanical latching push to exit red mushroom button with isolated NO and NC contacts, mounted on a stainless steel plate.

• 40mm mushroom head
• Current (max): 10A/24VDC
• Current (min): 5mA
• Resistance: <=50 mΩ
• Insulation resistance: >100 MΩ
• Contacts: 1 x NO and 1 x NC (isolated)
• Stainless steel GPO plate
• Dimensions: 70 x 115 x 50mm (W x H x D)
