Foresight 2 Full HD surveillance Video transmission (AHD, TVI, CVI formats, and CVBS signals)

FEATURES

• Two Full HD surveillance Video transmission
• Provide Up-the-Coax transmission
• One cable transmits all signals and DC power
• Plug and play, easy to install

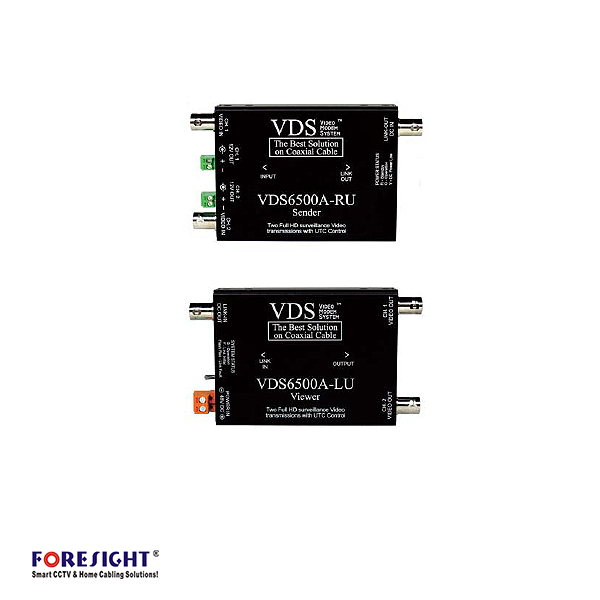

VDS6500A-RU Sender

• Video Input Signal : 1.0Vpp, 75 ohms. (Socket : BNC female)
• Bandwidth of Video Signal : 45MHz.
• Power Output : DC12V, 3.5 A max. (2 Socket : Round 2.1mm/5.5mm)
• Unit Dimensions (LxWxH) : 100mm x 75mm x 25mm
• Weight : 190 grams without Bracket
• Operating Temperature : -10 to 45°C (14 to 113°F)
• Relative Humidity : 20 to 90 percent, non-condensing

VDS6500A-LU Viewer

• VDS6500A-LU Viewer (PTB= Pluggable Terminal Block)
• Video Output Signal : 1.0Vpp, 75 ohms. (Socket : BNC female)
• Bandwidth of Video Signal : 45MHz. (Chroma portion : +/- 3dB)
• DC Output at Link-In : DC47V, 1.2 Amp max.
• Power Input : DC 48V +/- 10%. (Socket : 2 Pin PTB, 5.0mm Pitch)
• Unit Dimensions (LxWxH) : 100mm x 75mm x 25mm
• Weight : 190 grams without Bracket
• Operating Temperature : -10 to 40°C (14 to 104°F)
• Relative Humidity : 20 to 90 percent, non-condensing

VDS6500A-RU Sender

• Video Input Signal : 1.0Vpp, 75 ohms. (Socket : BNC female)
• Bandwidth of Video Signal : 45MHz.
• Power Output : DC12V, 3.5 A max. (2 Socket : Round 2.1mm/5.5mm)
• Unit Dimensions (LxWxH) : 100mm x 75mm x 25mm
• Weight : 190 grams without Bracket
• Operating Temperature : -10 to 45°C (14 to 113°F)
• Relative Humidity : 20 to 90 percent, non-condensing
