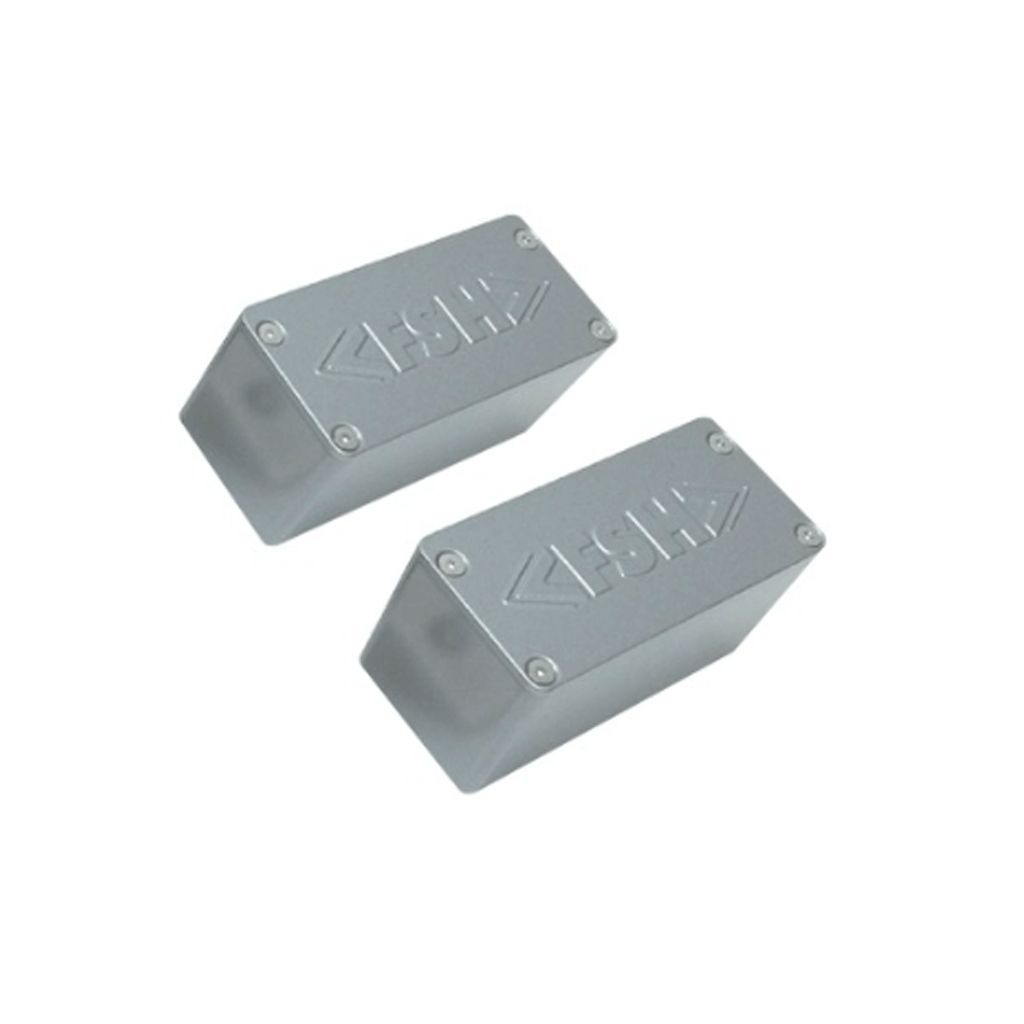

FSH FSS1 High Security Door Monitoring Sensor, Surface Mount, No Conduit

FSH  |  SKU: FSH-FSS1-S-NC
$83383 AUD

Description

The FSS1 Series of High Security Door Monitoring Sensors are designed to provide a true high security solution for door position monitoring.

It is a state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.

Specifically developed for high security applications in government, correctional and military installations, the FSH-FSS1-F Series High Security Door Monitoring Sensor consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern. The FSS1 is equipped with sophisticated anti-tamper facilitie

Features

  • Surface mount, non conduit version
  • Voltage: 10 - 30 VDC/<75mA
  • SL4 security proof tamper level
  • N.C common N.O, 0.2A @ 30V alarm and tampter contacs
  • 1 - 7mm door gap
  • Dimensions: L75 x H34 x D35 mm
  • IP67 rated
