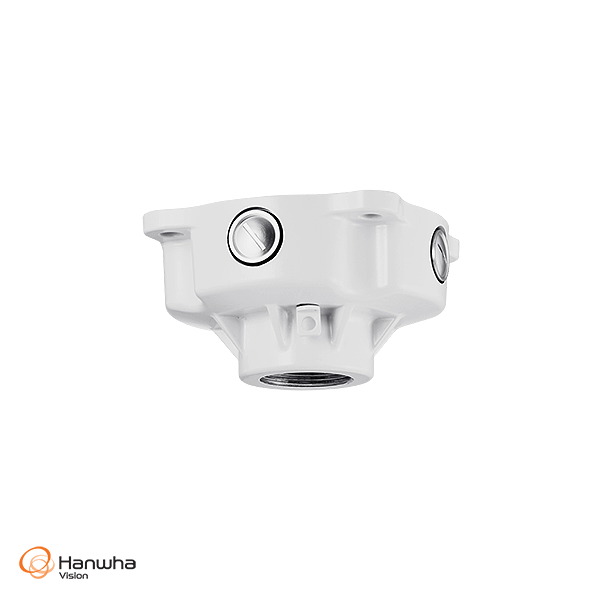

Hanwha Vision Back Box for pendant mount (Ivory), installed with CT-SBP-302CM

FEATURES

• Materials: Aluminum and Steel

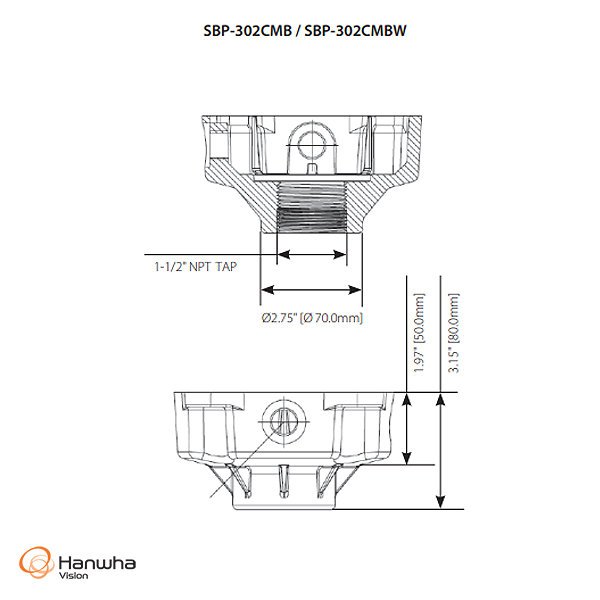

• Dimension: 150mm (W) x 150mm (H) x 80mm (D)
• Pipe Thread: 1.5" NPT female (bottom)
• Weight: 1.6lb (0.7kg)
• Max. Load: 80lb (36.2 kilograms)
• Applicable Mount: All Hanwha Hanging Mount (1.5" NPT)
• Colour: Ivory
• Optional Accessories:

SBP-302CM(W) telescopic pendant mount

SBP-302CMS(W) swivel mount adapter

SBP-302CM(W)-12 extension pipe ,12"

SBP-302CM(W)-36 extension pipe, 36"

• Cable Routing: 2x Cable Conduit Hole(Side), Cable Hole (Back)
