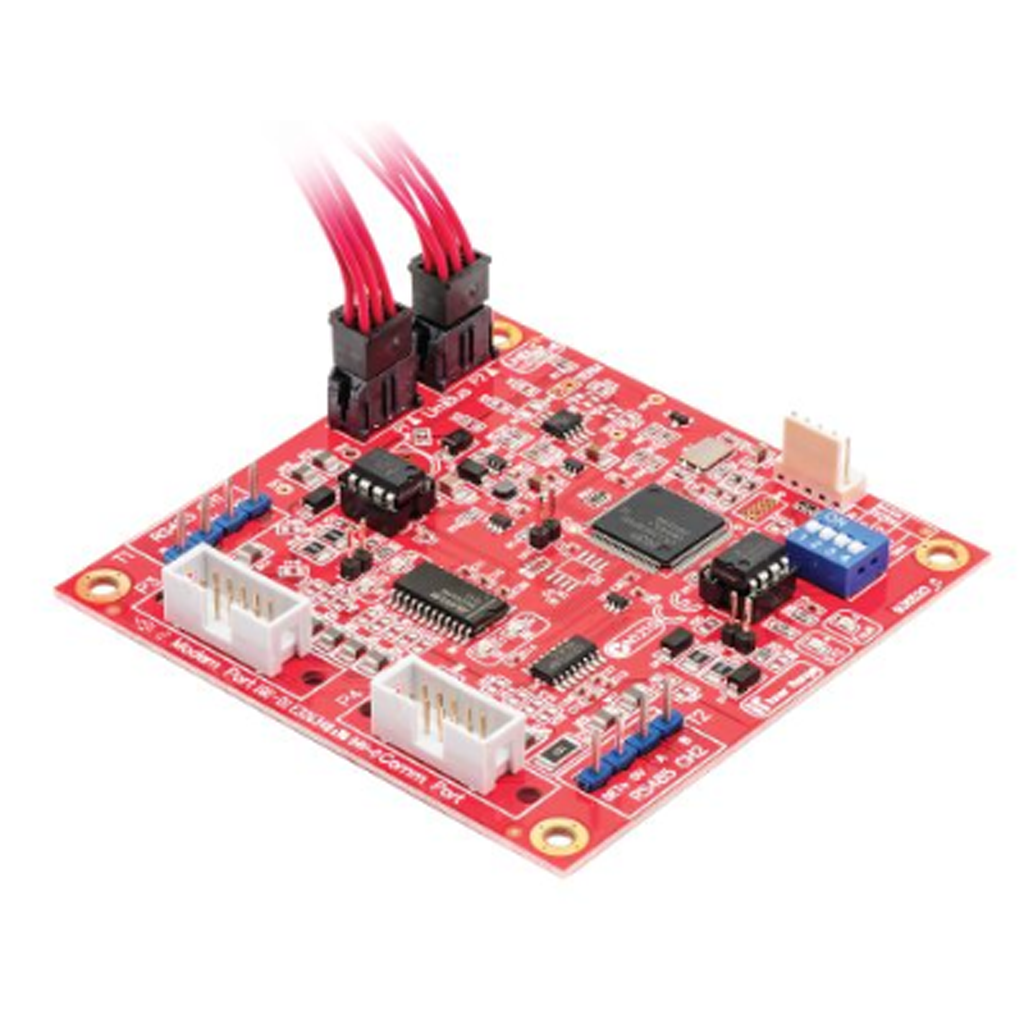

Integriti UniBus 2 Channel UART (RS232 & RS485) PCB & Kit, 220mm Interface Lead

Name: Integriti UniBus 2 Channel UART (RS232 & RS485) PCB & Kit, 220mm Interface Lead
Brand: Inner Range
SKU: IR-996520PCB&K
Price: 458.46 AUD
Availability: InStock

Inner Range | SKU: IR-996520PCB&K

$458⁴⁶ AUD

Description

The UniBus 2 Port UART provides 2 high speed, software configurable, Serial Ports allowing connection of peripheral serial devices. Up to 4 UniBus UART Boards may be connected to an Integriti Controller. DIP switch options allow each Port to be configured for RS-232 or RS-485 operation.

The UniBus 2 Port UART is designed for installation within the same enclosure as its UniBus host module and the board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.

Specific RS-232 cables are available separately for the connection of a Computer, Modem or other serial devices including the Inner Range GSM modem or Multipath IP STU.

Features

2 Software configurable UART Ports
- Channel 1 - RS-232 Modem / RS-485 Port
- Channel 2 - RS-232 Comm / RS-485 Port
DIP switch addressable module number 1, 2, 3 or 4
DIP switch selectable CH1/CH2 mode, RS-232 or RS-485
LED indication of CH1 & CH2 RX & TX activity
LED UniBus status indicator
2 LED system status / fault indicators
UniBus loop-through connectors
Over-The-Wire firmware upgradable
Integriti ?C? size footprint 94 x 94mm
